2869391 | Phoenix Contact

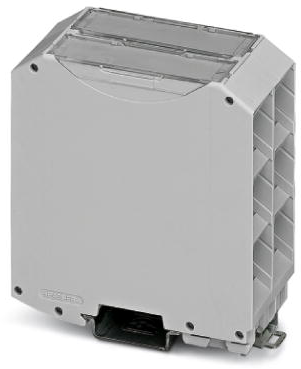

Plastic DIN rail enclosure, (L x W x H) 92 x 45.2 x 85 mm, light gray, IP20, 2869391
Unit Price (€ / pc.)
11.9595 € *
Available: 0 pcs.
Available in 10 days: 152 pcs.
Leadtime: 2 Weeks **
Electronic housing, 2869391, Phoenix Contact
DIN rail housing, complete housing with metal foot catch, flat design and without vents, Width: 45.2 mm, Height: 85 mm, Depth: 92 mm, Color: light grey (7035), Cross connection: DIN rail connector (optional), number of positions cross connector: 5
Features
- Easy installation
- Variety of connection technology
- Can be mounted on the DIN rail
- With DIN-rail-mountable bus connector and power connector system as an option
- Transparent front cover can be swiveled
Technical specifications
| Width | 45.2 mm | |
| Colour | light gray | |
| Height | 85 mm | |
| Length | 92 mm | |
| Material | plastic | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
