2901369 | Phoenix Contact

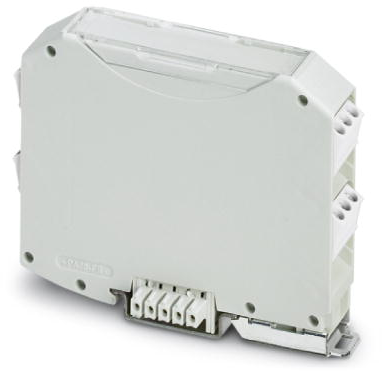

Plastic DIN rail enclosure, (L x W x H) 69.55 x 17.6 x 85 mm, light gray, IP20, 2901369

Order No.: 64P1488
EAN: 4046356178525
MPN:
2901369
ME MAX 17,5 SF G 2-2 KMGY
Series: ME MAX
Phoenix Contact
2901369 Phoenix Contact DIN-Rail Enclosures
Image may differ
Unit Price (€ / pc.)
5.8429 € *
Available: 0 pcs.
Available in 10 days: 2,280 pcs.
Leadtime: 2 Weeks **
Total Price:
5.84 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
5.8429 €

Electronic housing, 2901369, Phoenix Contact

DIN rail housing, complete housing with metal foot catch, ultra-flat design and without vents, Width: 17.6 mm, Height: 85 mm, Depth: 69.55 mm, Color: light grey (7035), Cross connection: DIN rail connector (optional), number of positions cross connector: 5

Features

  • Easy installation
  • Variety of connection technology
  • Can be mounted on the DIN rail
  • With DIN-rail-mountable bus connector and power connector system as an option
  • Transparent front cover can be swiveled
Technical specifications
Width 17.6 mm
Colour light gray
Height 85 mm
Length 69.55 mm
Material plastic
Degree of protection (IP) IP20
Logistics
Country of origin DE
Customs tariff number 85389099
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
