1452217 | Phoenix Contact
Valve connector, DIN shape B, 3 pole, 110 V, 0.25-1.5 mm², 1452217
Unit Price (€ / pc.)
12.4236 € *
Available: 0 pcs.
Available in 10 days: 102 pcs.
Leadtime: 2 Weeks **

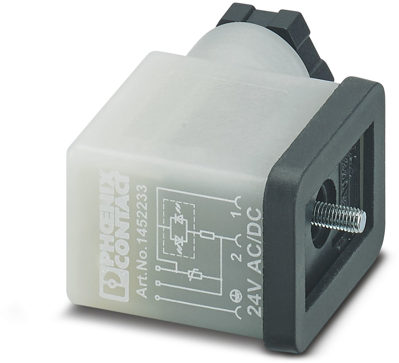

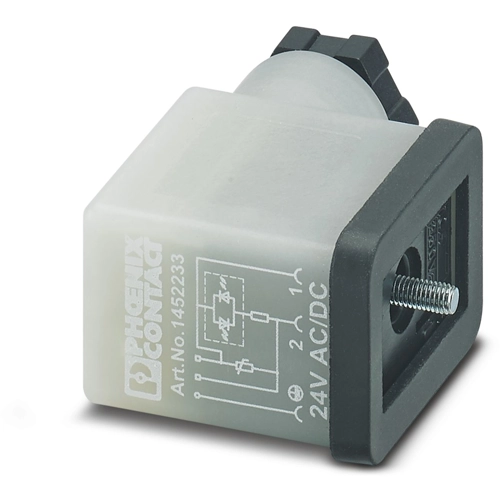

Valve connector, 1452217, Phoenix Contact
Valve connector, 3-pole, valve connector B (10 mm), with 1 LED, wired with varistor, screw connection, cable gland M16, cable outer diameter 6-8 mm.
Technical specifications
| Version | DIN FORM B | |
| Cable cross-section | 0,25-1,5 mm² | |
| Pin number | 3-polig | |
| Rated voltage | 110 V | |
| Degree of protection (IP) | IP65 | |
| Wiring | Varistor | |
| LED display | Yes | |
| Type of locking | Zentralschraube |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
