1458554 | Phoenix Contact
Valve connector, DIN shape B, 3 pole, 24 V, 1458554
Unit Price (€ / pc.)
39.5437 € *
Available: 0 pcs.
Available in 10 days: 108 pcs.
Leadtime: 2 Weeks **
Valve connector, 1458554, Phoenix Contact

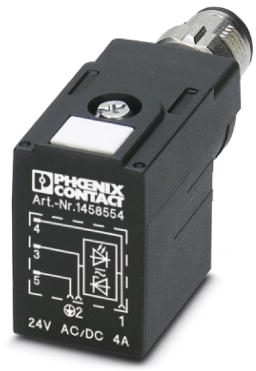

Valve connector, 3-pole, plug angled M12, A-coded, on valve connector B (10 mm), with 1 LED, wired with Z-diode.
Technical specifications
| Version | DIN FORM B | |
| Wiring | Z-Diode | |
| LED display | Yes | |
| Rated voltage | 24 V | |
| Pin number | 3-polig | |
| Degree of protection (IP) | IP65 | |
| Type of locking | SPEEDCON-Verriegelung |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
