1623509 | Phoenix Contact
Charging cable, 4 m, type 2 to type 2, 3 phase, mode 3, 32 A, 480 V, 1623509
Unit Price (€ / pc.)
325.7506 € *
Available: 0 pcs.
Available in 10 days: 177 pcs.
Leadtime: 2 Weeks **

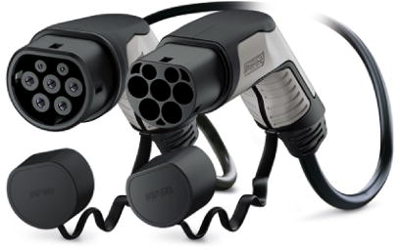

Charging cable, 1623509, Phoenix Contact
Mobile AC charging cable with vehicle charging connector and infrastructure charging plug for charging electric vehicles (EV) with alternating current (AC) via type 2 vehicle charging inlets, compatible with type 2 infrastructure charging sockets at charging stations for e-mobility (EVSE).
Features
- Convenient handling due to the ergonomic
- Longitudinal water tightness reliably prevents water ingress
- Laser-marked mating face
Technical specifications
| Connection (1) | type 2 | |
| Connection (2) | type 2 | |
| Number of phases | 3 | |
| Colour | black | |
| Cable length | 4 m | |
| Loading mode | mode 3 | |
| Cable cross-section | 5 x 6.0 mm² + 1 x 0.5 mm² | |
| Rated voltage | 480 V | |
| Rated current | 32 A |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85011099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
