1627362 | Phoenix Contact
Charging cable, 5 m, type 1 to open end, 1 phase, mode 3, 20 A, 250 V, 1627362
Unit Price (€ / pc.)
195.0172 € *
Available: 0 pcs.
Available in 10 days: 210 pcs.
Leadtime: 2 Weeks **

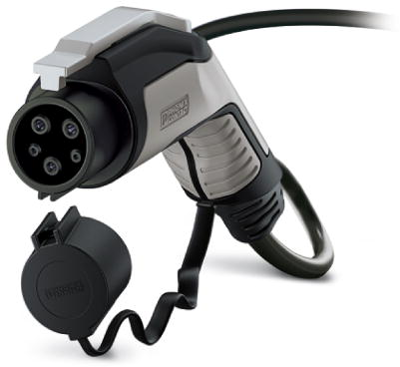

Charging cable, 1627362, Phoenix Contact
AC charging cable with vehicle charging connector and free cable end for charging electric vehicles (EV) with alternating current (AC) via type 1 vehicle charging inlets, for installation at charging stations for e-mobility (EVSE).
Features
- Convenient handling due to the ergonomic
- Longitudinal water tightness reliably prevents water ingress
- Laser-marked mating face
Technical specifications
| Connection (1) | Typ 1 | |
| Connection (2) | offenes Ende | |
| Number of phases | 1 | |
| Loading mode | Mode 3 | |
| Cable length | 5 m | |
| Colour | schwarz | |
| Cable cross-section | 3 x 2,5 mm² + 1 x 0,5 mm² | |
| Rated current | 20 A | |
| Rated voltage | 250 V |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
