1628020 | Phoenix Contact
Charging cable, 4 m, type 1 to type 2, 1 phase, mode 3, 20 A, 250 V, 1628020
Unit Price (€ / pc.)
331.3793 € *
Available: 0 pcs.
Leadtime: 8 Weeks **

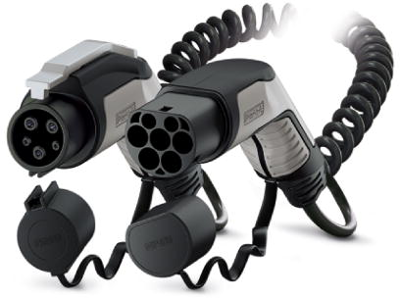

Charging cable, 1628020, Phoenix Contact
Mobile AC charging cable with vehicle charging connector and infrastructure charging plug for charging electric vehicles (EV) with alternating current (AC) via type 1 vehicle charging inlets, compatible with type 2 infrastructure charging sockets at charging stations for e-mobility (EVSE).
Features
- Convenient handling due to the ergonomic
- Longitudinal water tightness reliably prevents water ingress
- Laser-marked mating face
Technical specifications
| Anschluss (1) | Typ 1 | |
| Anschluss (2) | Typ 2 | |
| Anzahl der Phasen | 1 | |
| Farbe | schwarz | |
| Kabellänge | 4 m | |
| Lademodus | Mode 3 | |
| Leiterquerschnitt | 3 x 2,5 mm² + 1 x 0,5 mm² | |
| Nennspannung | 250 V | |
| Nennstrom | 20 A |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85363090 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
