1628419 | Phoenix Contact
Charging cable, 5 m, type 1 to open end, 1 phase, mode 3, 32 A, 250 V, 1628419
Unit Price (€ / pc.)
241.6652 € *
Available: 0 pcs.
Leadtime: 7 Weeks **

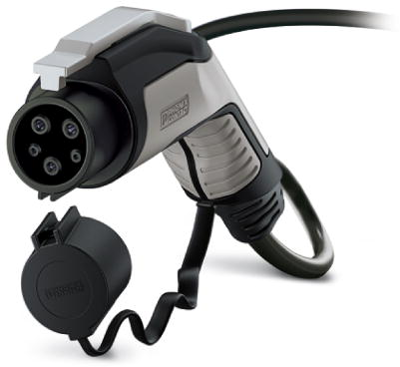

Charging cable, 1628419, Phoenix Contact
AC charging cable with vehicle charging connector and free cable end for charging electric vehicles (EV) with alternating current (AC) via type 1 vehicle charging inlets, for installation at charging stations for e-mobility (EVSE).
Features
- Convenient handling due to the ergonomic
- Longitudinal water tightness reliably prevents water ingress
- Laser-marked mating face
Technical specifications
| Anschluss (1) | Typ 1 | |
| Anschluss (2) | offenes Ende | |
| Anzahl der Phasen | 1 | |
| Farbe | schwarz | |
| Kabellänge | 5 m | |
| Lademodus | Mode 3 | |
| Leiterquerschnitt | 3 x 6,0 mm² + 1 x 0,75 mm² | |
| Nennspannung | 250 V | |
| Nennstrom | 32 A |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
