2981512 | Phoenix Contact
PSR extension module, 4 Form A (N/O) + 1 Form B (N/C), 24 VDC, 6 A, 2981512
Unit Price (€ / pc.)
248.8766 € *
Available: 0 pcs.
Available in 10 days: 5 pcs.
Leadtime: 1 Week **

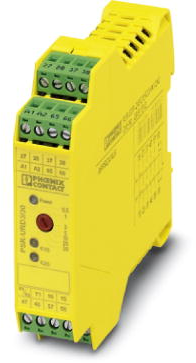

Extension module, 2981512, Phoenix Contact
1-channel contact extension with TBUS interface, 4 N/O contacts, 1 N/C contact, 1 confirmation current path, adjustable dropout delay of 0.5-30 s, Cat. 3, PL e in accordance with EN ISO 13849, plug-in screw terminal blocks, width: 22.5 mm.
Features
- Each with 4 enabling, 1 signaling, and 1 confirmation current path, all with dropout delay
- 1-channel control
Technical specifications
| Ausführung | Erweiterungsmodul | |
| Breite | 22.5 mm | |
| Höhe | 99 mm | |
| Kontaktart | 4 Schließer + 1 Öffner | |
| Montage | DIN-Schiene | |
| Schaltstrom | 6 A | |
| Steuerspannung | 24 VDC | |
| Tiefe | 114.5 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85371098 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
