2865599 | Phoenix Contact
HART-Multiplexer, 57.6 kbit/s, 24 VDC, 2865599
Unit Price (€ / pc.)
1,291.1976 € *
Available: 0 pcs.
Available in 10 days: 53 pcs.
Leadtime: 2 Weeks **
Total Price:
1,291.20 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1,291.1976 €

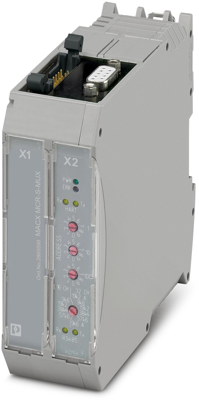

HART multiplexer, 2865599, Phoenix Contact
HART Multiplexer for online configuration and diagnostics of HART-compatible field devices, as well as for continuous documentation of process variables and states with a PC or management system for mounting on NS 35/7.5 or NS 32.
Features
- Supports online configuration and diagnostics for the connected HART-compatible field devices
- Communication via software tool (e.g., HART OPC server) using RS-485 interface
- Up to 128 HART multiplexers on one PC interface
- 32 HART channels per multiplexer
- Continuous documentation of process variables and states
- Electrical isolation between auxiliary voltage, RS-485 bus, and the HART channels
- HART field device is accessed parallel to the transmission of the measurement signal without affecting measured value processing
- HART field device connect via universal HART connection boards; direct connection if processing non-Ex signals, with separate Ex i signal isolator connected upstream if processing Ex signals
- Power supply via HART connection board
Technical specifications
| Version | HART-Multiplexer | |
| Suitable for | online configuration and diagnosis of HART-capable field devices | |
| Assembly | rail mounting | |
| Voltage | 24 VDC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85176200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
