1013133 | Phoenix Contact
Fuse terminal block, 2 pole, 0.14-6.0 mm², 500 V, 28 A, 1013133
Unit Price (€ / pc.)
21.5866 € *
Available: 0 pcs.
Leadtime: 5 Weeks **

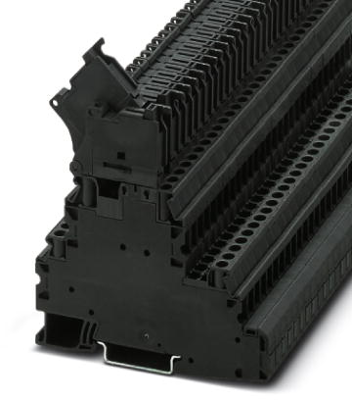

Fuse modular terminal block, 1013133, Phoenix Contact
Fuse modular terminal block, with diode 1N4007, Fuse type: Glass/ceramics/fuse type: G/5x20, nom. Voltage: 500 V, nominal current: 28 A, Connection method: Screw connection, Rated cross section: 4 mm², Cross section: 0.14-6 mm², Connection method: Screw connection, Rated cross section: 1 mm², Cross section: 0.14 mm²- 6 mm², Mounting type: NS 35/7,5, NS 35/15, Color: black.
Technical specifications
| Version | Sicherungsreihenklemme | |
| Number of terminals | 4 | |
| Pin number | 2-polig | |
| Cable cross-section | 0,14-6,0 mm² | |
| AWG cross-section | AWG 26 bis 10 | |
| Rated Voltage | 500 V | |
| Rated surge voltage | 6 kV | |
| Rated current | 28 A | |
| Degree of soiling | 3 | |
| Length | 92.7 mm | |
| Width | 6.2 mm | |
| Height | 88.9 mm | |
| Connection | Schraubanschluss | |
| Colour | schwarz |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
