3001925 | Phoenix Contact

Fuse terminal block, 1 pole, 0.2-6.0 mm², 12 V, 30 A, 3001925

Order No.: 60P5223
EAN: 4017918100964
MPN:
3001925
UK 6-FSI/C-LED12
Series: UK
3001925 Phoenix Contact Fuse Terminals
Image may differ
Unit Price (€ / pc.)
17.2669 € *
Available: 0 pcs.
Available in 10 days: 1,992 pcs.
Leadtime: 2 Weeks **
Total Price:
17.27 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
17.2669 €

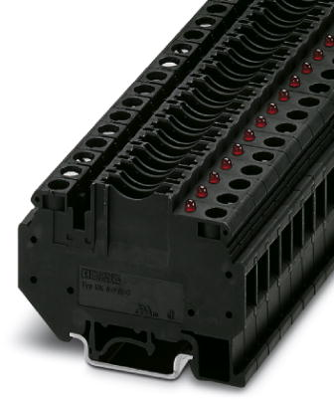

Fuse terminal block, 3001925, Phoenix Contact

Flat-type fuse terminal block, Cross section: 0.2-6 mm², AWG: 26-8, Width: 8.2 mm, Color: black, with light indicator, Voltage light indicator: 12 V DC, Current light indicator: 2 mA.

Can be bridged with FBI fixed bridge

Technical specifications
Version Sicherungsreihenklemme
Number of terminals 2
Pin number 1-polig
Cable cross-section 0,2-6,0 mm²
AWG cross-section AWG 26 bis 8
Rated Voltage 12 V
Rated surge voltage 4 kV
Rated current 30 A
Degree of soiling 3
Length 64 mm
Width 8.2 mm
Height 52 mm
Connection Schraubanschluss
Colour schwarz
Logistics
Country of origin TR
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
