3001938 | Phoenix Contact
Fuse terminal block, 1 pole, 0.2-6.0 mm², 250 V, 30 A, 3001938
Unit Price (€ / pc.)
17.2669 € *
Available: 0 pcs.
Available in 10 days: 11,233 pcs.
Leadtime: 2 Weeks **

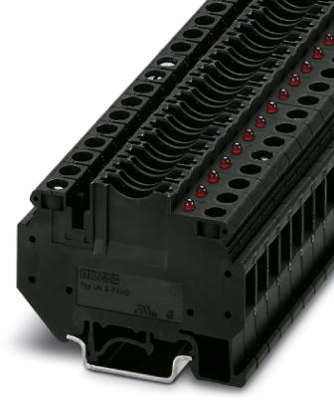

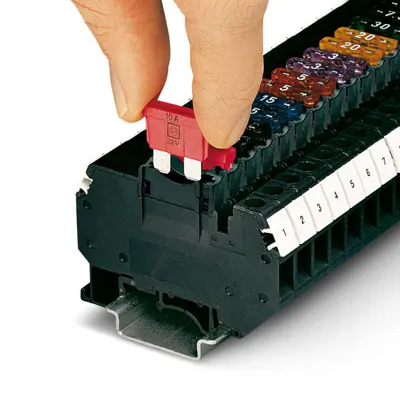

Fuse terminal block, 3001938, Phoenix Contact
Flat-type fuse terminal block, Cross section: 0.2-6 mm², AWG: 26-8, Width: 8.2 mm, Color: black, with light indicator, Voltage light indicator: 24 V DC, Current light indicator: 2 mA.

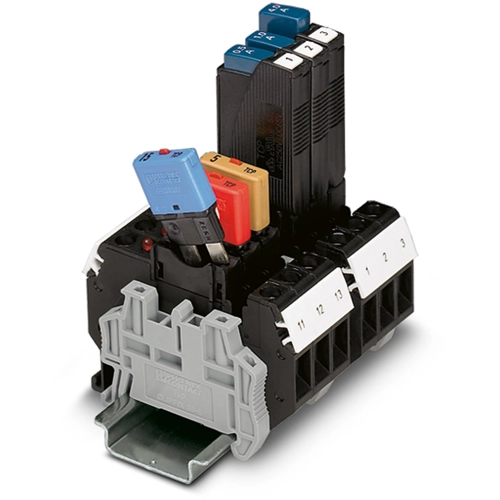

Can be bridged with FBI fixed bridge
Technical specifications
| Version | Sicherungsreihenklemme | |
| Number of terminals | 2 | |
| Pin number | 1-polig | |
| Cable cross-section | 0,2-6,0 mm² | |
| AWG cross-section | AWG 26 bis 8 | |
| Rated Voltage | 250 V | |
| Rated surge voltage | 4 kV | |
| Rated current | 30 A | |
| Degree of soiling | 3 | |
| Length | 64 mm | |
| Width | 8.2 mm | |
| Height | 52 mm | |
| Connection | Schraubanschluss | |
| Colour | schwarz |
Download
Logistics
| Country of origin | TR |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
