3002602 | Phoenix Contact
Fuse terminal block, 5 pole, 0.2-6.0 mm², 500 V, 28 A, 3002602
Unit Price (€ / pc.)
10.7338 € *
Available: 0 pcs.
Available in 10 days: 6 pcs.
Leadtime: 2 Weeks **

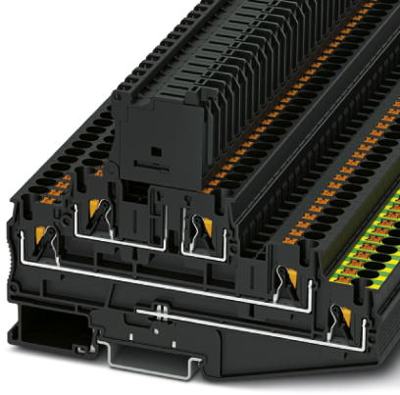

Fuse modular terminal block, 3002602, Phoenix Contact
Fuse modular terminal block, Fuse type: Glass/ceramics/fuse type: G/5x20, Nom. voltage: 500 V, Nominal current: 28 A, Connection method: Push-in connection, Rated cross section: 4 mm², Cross section: 0.2-6 mm², Connection method: Push-in connection, Cross section: 0.2-6 mm² , Mounting type: NS 35/7,5, NS 35/15, Color: black.
Easy and tool-free direct plug-in thanks to push-in multi-conductor connection.
Technical specifications
| Connection | push-in connection | |
| Number of terminals | 5 | |
| Version | Fuse terminal block | |
| AWG cross-section | AWG 24 to 10 | |
| Rated Voltage | 500 V | |
| Rated surge voltage | 6 kV | |
| Width | 6.2 mm | |
| Colour | black | |
| Height | 82.6 mm | |
| Length | 118.5 mm | |
| Cable cross-section | 0.2-6.0 mm² | |
| Rated current | 28 A | |
| Pin number | 5 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
