3002609 | Phoenix Contact

Fuse terminal block, 4 pole, 0.2-6.0 mm², 24 V, 28 A, 3002609

Order No.: 60P2602
EAN: 4055626370231
MPN:
3002609
PT 4-L/HESILED 24 (5X20)
Series: PT
Phoenix Contact

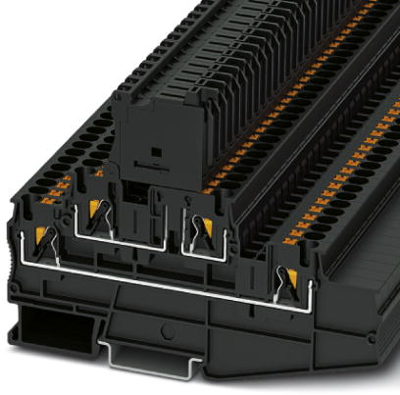

3002609 Phoenix Contact Fuse Terminals
Image may differ
Unit Price (€ / pc.)
9.877 € *
Available: 0 pcs.
Available in 10 days: 23,100 pcs.
Leadtime: 2 Weeks **
Total Price:
9.88 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 pcs.
9.877 €

Fuse modular terminal block, 3002609, Phoenix Contact

Fuse modular terminal block, Fuse type: Glass/ceramics/fuse type: G/5x20, Nom. voltage: 24 V, Nominal current: 28 A, Connection method: Push-in connection, Rated cross section: 4 mm², Cross section: 0.2-6 mm², Connection method: Push-in connection, Rated cross section: 4 mm², Cross section: 0.2-6 mm², Mounting type: NS 35/7,5, NS 35/15, Color: black.

Easy and tool-free direct plug-in thanks to push-in multi-conductor connection.

Technical specifications
Connection push-in connection
Number of terminals 4
Version Fuse terminal block
AWG cross-section AWG 24 to 10
Rated Voltage 24 V
Rated surge voltage 6 kV
Width 6.2 mm
Colour black
Height 82.6 mm
Length 118.5 mm
Cable cross-section 0.2-6.0 mm²
Rated current 28 A
Pin number 4 pole
Degree of soiling 3
Logistics
Country of origin CN
Customs tariff number 85369095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
