3005507 | Phoenix Contact
Fuse terminal block, 2 pole, 0.5-16 mm², 400 V, 10 A, 3005507
Unit Price (€ / pc.)
17.7310 € *
Available: 0 pcs.
Available in 10 days: 6,656 pcs.
Leadtime: 2 Weeks **
Total Price:
17.73 € *
Price list
Quantity
Price per unit*
1 pcs.
17.7310 €
10 pcs.
15.9579 €
50 pcs.
14.3752 €
100 pcs.
12.9353 €
*incl. VAT plus shipping costs
**Subject to prior sale

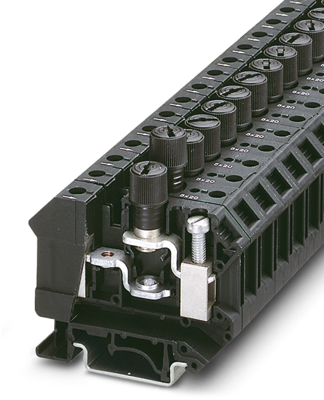

Fuse modular terminal block, 3005507, Phoenix Contact
Fuse modular terminal block, Fuse type: Glass/ceramics/fuse type: G/6,3x32, Nom. voltage: 400 V, Nominal current: 10 A, Connection method: Screw connection, Rated cross section: 1.5 mm², Cross section: 0.5-16 mm², Mounting type: NS 35/7,5, NS 35/15, NS 32, Color: black.
Can be bridged with FBI fixed bridge
Technical specifications
| Version | Sicherungsreihenklemme | |
| Number of terminals | 2 | |
| Pin number | 2-polig | |
| Cable cross-section | 0,5-16 mm² | |
| AWG cross-section | AWG 20 bis 6 | |
| Rated Voltage | 400 V | |
| Rated surge voltage | 4 kV | |
| Rated current | 10 A | |
| Degree of soiling | 3 | |
| Length | 62 mm | |
| Width | 12 mm | |
| Height | 57.2 mm | |
| Connection | Schraubanschluss | |
| Colour | schwarz |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
