3036547 | Phoenix Contact

Fuse terminal block, 2 pole, 4.0 mm², 24 V, 6.3 A, 3036547

Order No.: 60P4742
EAN: 4017918890483
MPN:
3036547
ST 4-HESILED 24 (5X20)
Series: ST
Phoenix Contact
3036547 Phoenix Contact Fuse Terminals
Image may differ
Unit Price (€ / pc.)
13.5779 € *
Available: 0 pcs.
Available in 10 days: 29,836 pcs.
Leadtime: 2 Weeks **
Total Price:
13.58 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
13.5779 €

Fuse terminal block, 3036547, Phoenix Contact

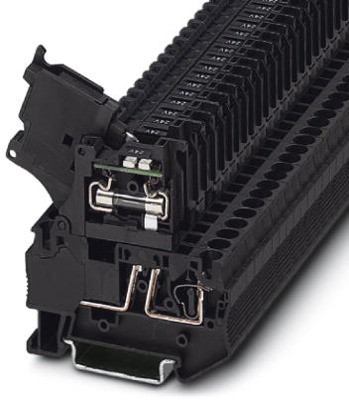

Lever-type fuse terminal block, black, for 5x20 mm G fuse inserts, with LED for 24 V AC/DC.

Features

  • An extremely compact design
  • Test connection on both sides in safety lever
Technical specifications
Connection tension clamp connection
Number of terminals 2
Version Fuse terminal block
AWG cross-section AWG 28 to 10
Rated Voltage 24 V
Rated surge voltage 4 kV
Width 6.2 mm
Colour black
Height 62.5 mm
Length 61.5 mm
Cable cross-section 4.0 mm²
Rated current 6.3 A
Pin number 2 pole
Degree of soiling 3
Logistics
Country of origin TR
Customs tariff number 85369095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
