3036552 | Phoenix Contact
Fuse terminal block, 2 pole, 4.0 mm², 24 V, 6.3 A, 3036552
Unit Price (€ / pc.)
12.5069 € *
Available: 0 pcs.
Available in 10 days: 1,948 pcs.
Leadtime: 1 Week **

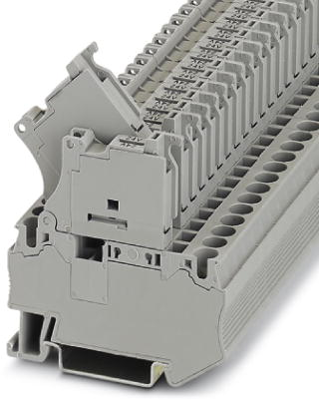

Fuse terminal block, 3036552, Phoenix Contact
Lever-type fuse terminal block, color: gray, for 5x20 mm cartridge fuse-links, with LED for 24 V AC/DC.
Features
- An extremely compact design
- Test connection on both sides in safety lever
Technical specifications
| Connection | tension clamp connection | |
| Number of terminals | 2 | |
| Version | Fuse terminal block | |
| AWG cross-section | AWG 28 to 10 | |
| Rated Voltage | 24 V | |
| Rated surge voltage | 4 kV | |
| Width | 6.2 mm | |
| Colour | gray | |
| Height | 62.5 mm | |
| Length | 61.5 mm | |
| Cable cross-section | 4.0 mm² | |
| Rated current | 6.3 A | |
| Pin number | 2 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | TR |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
