3046032 | Phoenix Contact

Fuse terminal block, 2 pole, 0.14-6.0 mm², 500 V, 6.3 A, 3046032

Order No.: 60P5686
EAN: 4017918956578
MPN:
3046032
UT 4-HESI (5X20)
Series: UT

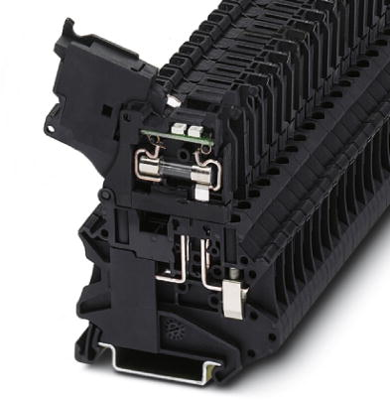

3046032 Phoenix Contact Fuse Terminals
Image may differ
Unit Price (€ / pc.)
5.8072 € *
Available: 0 pcs.
Available in 10 days: 13,917 pcs.
Leadtime: 1 Week **
Total Price:
5.81 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
5.8072 €

Fuse modular terminal block, 3046032, Phoenix Contact

Fuse modular terminal block, Fuse type: Glass/ceramics/fuse type: G/5x20, Nom. voltage: 500 V, Nominal current: 6.3 A, Connection method: Screw connection, Rated cross section: 4 mm², Cross section: 0.14-6 mm², Mounting type: NS 35/7,5, NS 35/15, Color: black.

Features

  • An extremely compact design
  • Test connection on both sides in safety lever
Technical specifications
Anschluss Schraubanschluss
Anzahl der Klemmstellen 2
Ausführung Sicherungsreihenklemme
AWG-Leiterquerschnitt AWG 26 bis 10
Bemessungsspannung 500 V
Bemessungsstoßspannung 6 kV
Breite 6.2 mm
Farbe schwarz
Höhe 73 mm
Länge 57.8 mm
Leiterquerschnitt 0,14-6,0 mm²
Nennstrom 6.3 A
Polzahl 2-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland DE
Zolltarifnummer 85369095
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
