3046126 | Phoenix Contact
Fuse terminal block, 2 pole, 0.14-6.0 mm², 60 V, 6.3 A, 3046126
Unit Price (€ / pc.)
11.067 € *
Available: 0 pcs.
Available in 10 days: 1,640 pcs.
Leadtime: 1 Week **

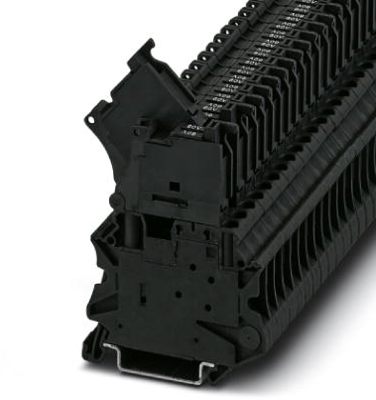

Fuse modular terminal block, 3046126, Phoenix Contact
Fuse modular terminal block, Fuse type: Glass/ceramics/fuse type: G/5x20, Nom. voltage: 60 V, Nominal current: 6.3 A, Connection method: Screw connection, Rated cross section: 4 mm², Cross section: 0.14-6 mm², Mounting type: NS 35/7,5, NS 35/15, Color: black.
Features
- An extremely compact design
- Test connection on both sides in safety lever
Technical specifications
| Anschluss | Schraubanschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Sicherungsreihenklemme | |
| AWG-Leiterquerschnitt | AWG 26 bis 10 | |
| Bemessungsspannung | 60 V | |
| Bemessungsstoßspannung | 4 kV | |
| Breite | 6.2 mm | |
| Farbe | schwarz | |
| Höhe | 73 mm | |
| Länge | 57.8 mm | |
| Leiterquerschnitt | 0,14-6,0 mm² | |
| Nennstrom | 6.3 A | |
| Polzahl | 2-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
