3048373 | Phoenix Contact
Fuse terminal block, 2 pole, 1.5-35 mm², 400 V, 25 A, 3048373
Unit Price (€ / pc.)
35.9499 € *
Available: 0 pcs.
Available in 10 days: 985 pcs.
Leadtime: 2 Weeks **
Total Price:
35.95 € *
Price list
Quantity
Price per unit*
1 pcs.
35.9499 €
10 pcs.
33.4390 €
25 pcs.
30.7615 €
50 pcs.
27.9888 €
*incl. VAT plus shipping costs
**Subject to prior sale

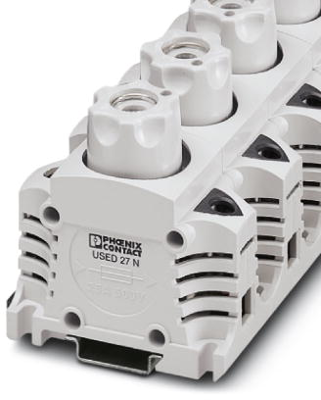

Fuse terminal block, 3048373, Phoenix Contact
Fuse terminal block for DIAZED fuse inserts.
The major advantage of the DIAZED system is its dielectric strength.
Technical specifications
| Version | Sicherungsreihenklemme | |
| Number of terminals | 2 | |
| Pin number | 2-polig | |
| Cable cross-section | 1,5-35 mm² | |
| AWG cross-section | AWG 16 bis 2 | |
| Rated Voltage | 400 V | |
| Rated surge voltage | 6 kV | |
| Rated current | 25 A | |
| Degree of soiling | 3 | |
| Length | 80 mm | |
| Width | 40 mm | |
| Height | 62.5 mm | |
| Connection | Schraubanschluss | |
| Colour | grau |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85363030 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
