3048386 | Phoenix Contact

Fuse terminal block, 2 pole, 1.5-25 mm², 690 V, 32 A, 3048386

Order No.: 60P5243
EAN: 4017918976293
MPN:
3048386
UK 10,3-HESI N
Series: UK

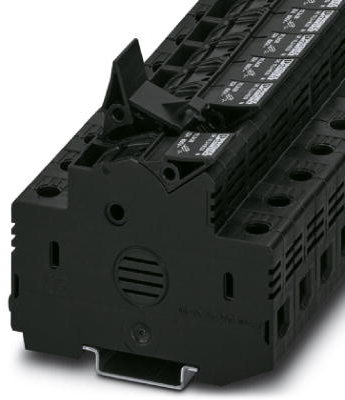

3048386 Phoenix Contact Fuse Terminals
Image may differ
Unit Price (€ / pc.)
18.5759 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
18.58 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
18.5759 €

Fuse modular terminal block, 3048386, Phoenix Contact

Fuse modular terminal block, Fuse type: Ceramic, Fuse type: 10:3x38 mm, Nom. voltage: 690 V, Nominal current: 32 A, Connection method: Screw connection, Rated cross section: 16 mm², Cross section: 1.5-25 mm², Mounting type: NS 35/7,5, NS 35/15, Color: black.

Features

  • Fuse holder for fuses
  • Easy to bridge
Technical specifications
Version Sicherungsreihenklemme
Number of terminals 2
Pin number 2-polig
Cable cross-section 1,5-25 mm²
AWG cross-section AWG 16 bis 4
Rated Voltage 690 V
Rated surge voltage 6 kV
Rated current 32 A
Degree of soiling 3
Length 81 mm
Width 18 mm
Height 65.5 mm
Connection Schraubanschluss
Colour schwarz
Logistics
Country of origin DE
Customs tariff number 85369095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
