3048616 | Phoenix Contact
Fuse terminal block, 2 pole, 1.5-25 mm², 600 V, 32 A, 3048616
Unit Price (€ / pc.)
34.5933 € *
Available: 0 pcs.
Available in 10 days: 415 pcs.
Leadtime: 1 Week **

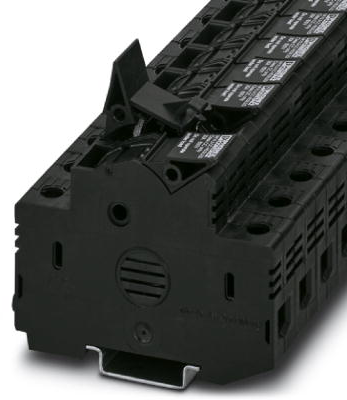

Fuse modular terminal block, 3048616, Phoenix Contact
Fuse modular terminal block, Fuse type: Glass/ceramics/fuse type: Class CC, Nom. voltage: 600 V, Nominal current: 30 A, Connection method: Screw connection, Rated cross section: 25 mm², Cross section: 1.5-25 mm², Mounting type: NS 35/7,5, NS 35/15, Color: black.
Features
- Fuse holder for fuses
- Easy to bridge
Technical specifications
| Anschluss | Schraubanschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Sicherungsreihenklemme | |
| AWG-Leiterquerschnitt | AWG 16 bis 4 | |
| Bemessungsspannung | 600 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 18 mm | |
| Farbe | schwarz | |
| Höhe | 65.5 mm | |
| Länge | 81 mm | |
| Leiterquerschnitt | 1,5-25 mm² | |
| Nennstrom | 32 A | |
| Polzahl | 2-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
