3048661 | Phoenix Contact

Fuse terminal block, 2 pole, 1.5-25 mm², 72 V, 32 A, 3048661

Order No.: 60P5245
EAN: 4046356138642
MPN:
3048661
UK 10,3-HESILED N 72
Series: UK

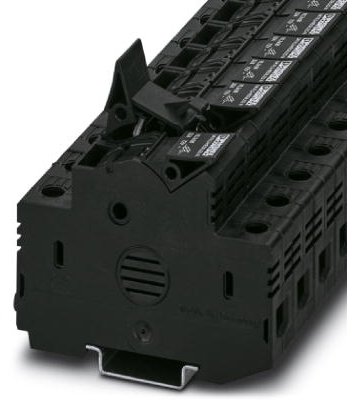

3048661 Phoenix Contact Fuse Terminals
Image may differ
Unit Price (€ / pc.)
31.7611 € *
Available: 0 pcs.
Available in 10 days: 384 pcs.
Leadtime: 1 Week **
Total Price:
31.76 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
31.7611 €

Fuse modular terminal block, 3048661, Phoenix Contact

Fuse modular terminal block, Fuse type: Glass/ceramics/fuse type: Midget / 10.3x38, Nom. voltage: 72 V, Nominal current: 32 A, Connection method: Screw connection, Rated cross section: 16 mm², Cross section: 1.5-25 mm², Mounting type: NS 35/7,5, NS 35/15, Color: black.

Features

  • Fuse holder for fuses
  • Easy to bridge
  • Quick identification of faulty fuses regardless of the current direction, thanks to LED status indicator
Technical specifications
Anschluss Schraubanschluss
Anzahl der Klemmstellen 2
Ausführung Sicherungsreihenklemme
AWG-Leiterquerschnitt AWG 16 bis 4
Bemessungsspannung 72 V
Bemessungsstoßspannung 6 kV
Breite 18 mm
Farbe schwarz
Höhe 65.5 mm
Länge 81 mm
Leiterquerschnitt 1,5-25 mm²
Nennstrom 32 A
Polzahl 2-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland DE
Zolltarifnummer 85369095
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
