3211249 | Phoenix Contact

Fuse terminal block, 2 pole, 1.5-25 mm², 1000 V, 30 A, 3211249

Order No.: 60P5231
EAN: 4046356482400
MPN:
3211249
UK 10,3 HESILED 1000V
Series: UK

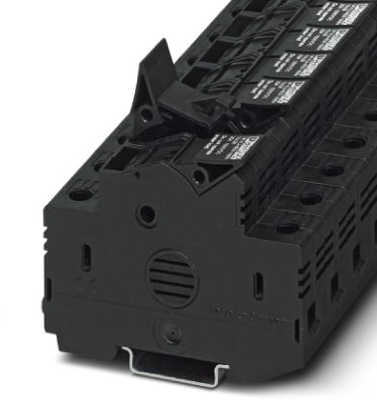

3211249 Phoenix Contact Fuse Terminals
Image may differ
Unit Price (€ / pc.)
16.6481 € *
Available: 0 pcs.
Available in 10 days: 2,608 pcs.
Leadtime: 1 Week **
Total Price:
16.65 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
16.6481 €

Fuse holder, 3211249, Phoenix Contact

Fuse holder, Fuse type: Glass/ceramics/fuse type: gPV 10.3x38 mm in accordance with 60269-6, Nom. voltage: 1000 V, Nominal current: 30 A, Connection method: Screw connection, Rated cross section: 16 mm², Cross section: 0.75-25 mm², Mounting type: NS 35/7,5, NS 35/15, NS 32, Color: black.

Fuse holder for fusing PV strings 1000 V DC.

Features

  • Quick identification of faulty fuses regardless of the current direction, thanks to LED status indicator
  • Easy to bridge
Technical specifications
Anschluss Schraubanschluss
Anzahl der Klemmstellen 2
Ausführung Sicherungsreihenklemme
AWG-Leiterquerschnitt AWG 16 bis 4
Bemessungsspannung 1000 V
Bemessungsstoßspannung 6 kV
Breite 18 mm
Farbe schwarz
Höhe 65.5 mm
Länge 81 mm
Leiterquerschnitt 1,5-25 mm²
Nennstrom 30 A
Polzahl 2-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland DE
Zolltarifnummer 85369095
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
