3211874 | Phoenix Contact
Fuse terminal block, 2 pole, 0.5-10 mm², 24 V, 10 A, 3211874
Unit Price (€ / pc.)
12.5902 € *
Available: 0 pcs.
Available in 10 days: 1,354 pcs.
Leadtime: 1 Week **

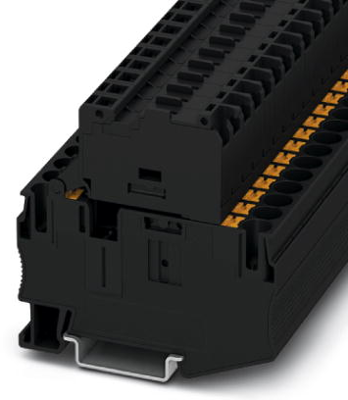

Fuse modular terminal block, 3211874, Phoenix Contact
Fuse modular terminal block, Fuse type: Glass/ceramics/fuse type: G/6,3x32, Nom. voltage: 24 V, Nominal current: 10 A, Connection method: Push-in connection, Rated cross section: 6 mm², Cross section: 0.5-10 mm², Mounting type: NS 35/7,5, NS 35/15, Color: black.
Features
- The compact design and front connection enable wiring in a confined space
- Easy and tool-free wiring of conductors with ferrules or solid conductors
- All terminal blocks provide an additional test connection
- Convenient fuse testing, thanks to test points on both sides
- Quick identification of faulty fuses, thanks to LED status indicator
Technical specifications
| Anschluss | Push-in-Anschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Sicherungsreihenklemme | |
| AWG-Leiterquerschnitt | AWG 20 bis 8 | |
| Bemessungsspannung | 24 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 8.2 mm | |
| Farbe | schwarz | |
| Höhe | 61.5 mm | |
| Länge | 74.5 mm | |
| Leiterquerschnitt | 0,5-10 mm² | |
| Nennstrom | 10 A | |
| Polzahl | 2-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85369095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
