3211907 | Phoenix Contact
Fuse terminal block, 2 pole, 4.0 mm², 250 V, 6.3 A, 3211907
Unit Price (€ / pc.)
8.1515 € *
Available: 0 pcs.
Available in 10 days: 8,232 pcs.
Leadtime: 1 Week **

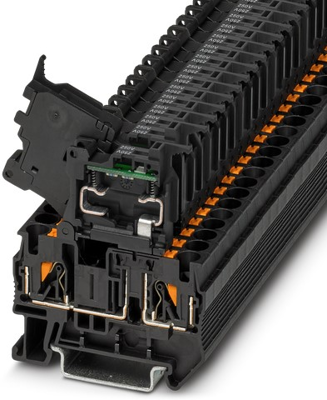

Fuse terminal block, 3211907, Phoenix Contact
Lever-type fuse terminal block, color: black, for 5x20 mm G fuse inserts, with LED for 250 V AC.
Features
- The compact design and front connection enable wiring in a confined space
- Easy and tool-free wiring of conductors with ferrules or solid conductors
- All terminal blocks provide an additional test connection
Technical specifications
| Anschluss | Push-in-Anschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Sicherungsreihenklemme | |
| AWG-Leiterquerschnitt | AWG 24 bis 10 | |
| Bemessungsspannung | 250 V | |
| Bemessungsstoßspannung | 4 kV | |
| Breite | 6.2 mm | |
| Farbe | schwarz | |
| Höhe | 57.3 mm | |
| Länge | 56 mm | |
| Leiterquerschnitt | 4,0 mm² | |
| Nennstrom | 6.3 A | |
| Polzahl | 2-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
