3212133 | Phoenix Contact
Fuse terminal block, 2 pole, 0.5-10 mm², 250 V, 10 A, 3212133
Unit Price (€ / pc.)
12.5902 € *
Available: 0 pcs.
Available in 10 days: 175 pcs.
Leadtime: 2 Weeks **

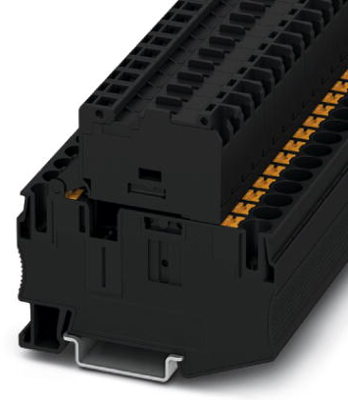

Fuse modular terminal block, 3212133, Phoenix Contact
Fuse modular terminal block, fuse type: Glass/ceramics/fuse type: G/6,3x32, nom. voltage: 250 V, nominal current: 10 A, connection method: Push-in connection, Rated cross section: 6 mm², cross section: 0.5-10 mm² , mounting type: NS 35/7,5, NS 35/15, color: black.
Features
- The compact design and front connection enable wiring in a confined space
- Easy and tool-free wiring of conductors with ferrules or solid conductors
- All terminal blocks provide an additional test connection
Technical specifications
| Version | Sicherungsreihenklemme | |
| Number of terminals | 2 | |
| Pin number | 2-polig | |
| Cable cross-section | 0,5-10 mm² | |
| AWG cross-section | AWG 20 bis 8 | |
| Rated Voltage | 250 V | |
| Rated surge voltage | 6 kV | |
| Rated current | 10 A | |
| Degree of soiling | 3 | |
| Length | 74.5 mm | |
| Width | 8.2 mm | |
| Height | 61.5 mm | |
| Connection | Push-in-Anschluss | |
| Colour | schwarz |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
