3212169 | Phoenix Contact

Fuse terminal block, 2 pole, 0.5-10 mm², 12 V, 25 A, 3212169

Order No.: 60P2685
EAN: 4055626394329
MPN:
3212169
PT 6-FSI/C-LED 12
Series: PT
Phoenix Contact

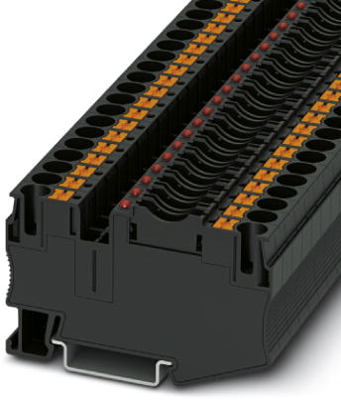

3212169 Phoenix Contact Fuse Terminals
Image may differ
Unit Price (€ / pc.)
10.8528 € *
Available: 0 pcs.
Available in 10 days: 3,013 pcs.
Leadtime: 2 Weeks **
Total Price:
10.85 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 pcs.
10.8528 €

Fuse modular terminal block, 3212169, Phoenix Contact

Fuse modular terminal block, Fuse type: Flat, fuse type: Type C / max. 2.2 W, Nom. voltage: 12 V, Nominal current: 25 A, Connection method: Push-in connection, Rated cross section: 6 mm², Cross section: 0.5-10 mm², Mounting type: NS 35/7,5, NS 35/15, Color: black.

Features

  • The compact design and front connection enable wiring in a confined space
  • Easy and tool-free wiring of conductors with ferrules or solid conductors
  • All terminal blocks provide an additional test connection
  • Convenient fuse testing, thanks to test points on both sides
  • Quick identification of faulty fuses, thanks to LED status indicator
Technical specifications
Connection push-in connection
Number of terminals 2
Version Fuse terminal block
AWG cross-section AWG 20 to 8
Rated Voltage 12 V
Rated surge voltage 6 kV
Width 8.2 mm
Colour black
Height 44 mm
Length 74.1 mm
Cable cross-section 0.5-10 mm²
Rated current 25 A
Pin number 2 pole
Degree of soiling 3
Logistics
Country of origin CN
Customs tariff number 85369095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
