3214320 | Phoenix Contact
Fuse terminal block, 2 pole, 0.14-6.0 mm², 500 V, 28 A, 3214320
Unit Price (€ / pc.)
13.3637 € *
Available: 0 pcs.
Available in 10 days: 3,235 pcs.
Leadtime: 1 Week **

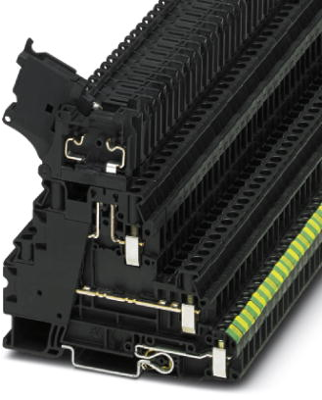

Fuse modular terminal block, 3214320, Phoenix Contact
Fuse modular terminal block, Fuse type: Glass/ceramics/fuse type: G/5x20, Nom. voltage: 500 V, Nominal current: 28 A, Connection method: Screw connection, Rated cross section: 4 mm², Cross section: 0.14-6 mm² , Connection method: Screw connection, Rated cross section: 1 mm² , Cross section: 0.14-6 mm² , Mounting type: NS 35/7,5, NS 35/15, Color: black.
Technical specifications
| Anschluss | Schraubanschluss | |
| Anzahl der Klemmstellen | 5 | |
| Ausführung | Sicherungsreihenklemme | |
| AWG-Leiterquerschnitt | AWG 26 bis 10 | |
| Bemessungsspannung | 500 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 6.2 mm | |
| Farbe | schwarz | |
| Höhe | 94.5 mm | |
| Länge | 92.7 mm | |
| Leiterquerschnitt | 0,14-6,0 mm² | |
| Nennstrom | 28 A | |
| Polzahl | 2-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
