3214325 | Phoenix Contact
Fuse terminal block, 2 pole, 0.14-6.0 mm², 24 V, 30 A, 3214325
Unit Price (€ / pc.)
7.5327 € *
Available: 0 pcs.
Available in 10 days: 3,677 pcs.
Leadtime: 1 Week **

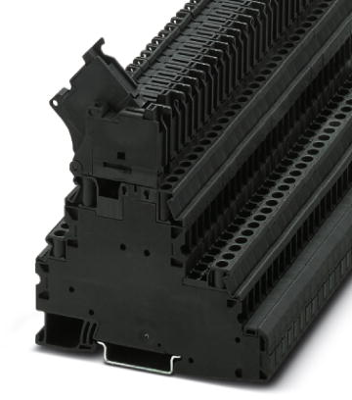

Fuse modular terminal block, 3214325, Phoenix Contact
Fuse modular terminal block, Fuse type: Glass/ceramics/fuse type: G/5x20, Nom. voltage: 250 V, Nominal current: 30 A, Connection method: Screw connection, Rated cross section: 4 mm² , Cross section: 0.14-6 mm² , Connection method: Screw connection, Rated cross section: 1 mm² , Cross section: 0.14-6 mm² , Mounting type: NS 35/7,5, NS 35/15, Color: black.
Technical specifications
| Anschluss | Schraubanschluss | |
| Anzahl der Klemmstellen | 4 | |
| Ausführung | Sicherungsreihenklemme | |
| AWG-Leiterquerschnitt | AWG 26 bis 10 | |
| Bemessungsspannung | 24 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 6.2 mm | |
| Farbe | schwarz | |
| Höhe | 94.5 mm | |
| Länge | 92.7 mm | |
| Leiterquerschnitt | 0,14-6,0 mm² | |
| Nennstrom | 30 A | |
| Polzahl | 2-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
