3270205 | Phoenix Contact
Fuse terminal block, 2 pole, 0.2-6.0 mm², 60 V, 6.3 A, 3270205
Unit Price (€ / pc.)
8.0087 € *
Available: 47 pcs.
Available in 10 days: 100 pcs.
Leadtime: 1 Week **

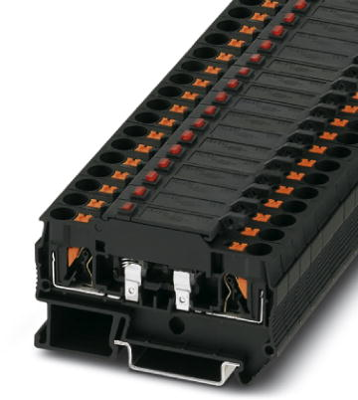

Fuse modular terminal block, 3270205, Phoenix Contact
Fuse modular terminal block, Fuse type: Glass/ceramics/fuse type: G/5x20, Nom. voltage: 60 V, Nominal current: 6.3 A, Connection method: Push-in connection, 1 level, Rated cross section: 1 mm² , Cross section: 0.2-6 mm², Mounting type: NS 35/7,5, NS 35/15, Color: black.
Features
- The compact design and front connection enable wiring in a confined space
- Easy and tool-free wiring of conductors with ferrules or solid conductors
- All terminal blocks provide an additional test connection
Technical specifications
| Anschluss | Push-in-Anschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Sicherungsreihenklemme | |
| AWG-Leiterquerschnitt | AWG 24 bis 10 | |
| Bemessungsspannung | 60 V | |
| Bemessungsstoßspannung | 4 kV | |
| Breite | 8.2 mm | |
| Farbe | schwarz | |
| Höhe | 35.3 mm | |
| Länge | 67.8 mm | |
| Leiterquerschnitt | 0,2-6,0 mm² | |
| Nennstrom | 6.3 A | |
| Polzahl | 2-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85369095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
