1054713 | Phoenix Contact

PC enclosure, (L x W x H) 64 x 172 x 116 mm, black (RAL 9005), IP66/IP67/IP69, 1054713

Order No.: 64P1000
EAN: 4055626690926
MPN:
1054713
ECS-B-122X109-L-UV1-NV
Series: ECS

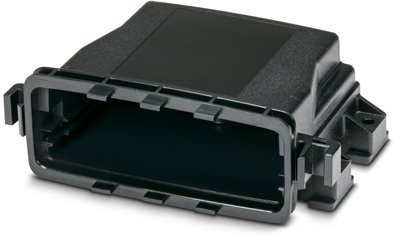

1054713 Phoenix Contact General Purpose Enclosures Image 1

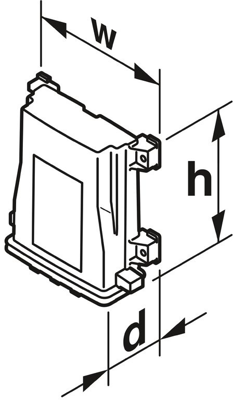

1054713 Phoenix Contact General Purpose Enclosures Image 2
Image may differ
Unit Price (€ / pc.)
29.9523 € *
Available: 0 pcs.
Available in 10 days: 137 pcs.
Leadtime: 1 Week **
Total Price:
29.95 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
29.9523 €

Electronic housing, 1054713, Phoenix Contact

Snap-in locking non-vented enclosure of the ECS Family. IP66/67/69 rated when mated with associated faceplate. Color: Black (9005), Width: 172 mm, Height: 116 mm, Depth: 64 mm.

Features

  • Housing design supports the installation of a range of PCB thicknesses for high application diversity
  • Integrated pressure compensation membrane for fluctuating ambient pressures
  • Optional accessories for wall and mast mounting
  • Proven PCB connection technology
  • Integrated tamper protection
  • Effective protection of electronics against thermal and mechanical influences
  • Suitable for outdoor/indoor applications
Technical specifications
Breite 172 mm
Farbe schwarz
Höhe 116 mm
Länge 64 mm
Material PC
RAL-Farbnummer 9005
Schutzart (IP) IP66/IP67/IP69
Logistics
Ursprungsland US
Zolltarifnummer 84879090
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
