2200895 | Phoenix Contact

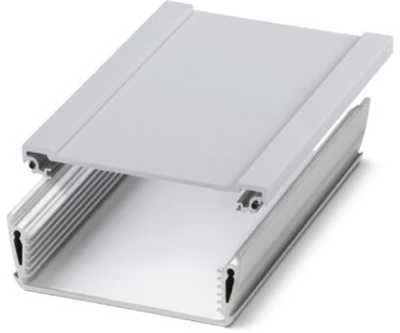

Aluminum Profile enclosure, (L x W x H) 1000 x 98.5 x 32.8 mm, graphite gray (RAL 7024), IP65, 2200895

Order No.: 64P1105
EAN: 4046356716222
MPN:
2200895
HC-ALU 6-78 PROFILE 1000
Series: HC-ALU
2200895 Phoenix Contact General Purpose Enclosures
Image may differ
Unit Price (€ / pc.)
281.9229 € *
Available: 0 pcs.
Available in 10 days: 4 pcs.
Leadtime: 1 Week **
Total Price:
281.92 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
281.9229 €

Electronic housing, 2200895, Phoenix Contact

Profile housing, Wall mounting, Aluminum profile, 2-piece, Color: graphite gray (7024), Profile width (internal): 78 mm, Profile width (external): 98.5 mm, Length: 1000 mm, Height: 98.5 mm, Depth: 32.8 mm.

Features

  • Aluminum extruded profile
  • Up to IP65 degree of protection
  • Can be used as handheld and wall housing
Technical specifications
Breite 98.5 mm
Farbe graphitgrau
Höhe 32.8 mm
Länge 1000 mm
Material Aluminium
RAL-Farbnummer 7024
Schutzart (IP) IP65
Logistics
Ursprungsland HU
Zolltarifnummer 76042100
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
