2203189 | Phoenix Contact

ABS enclosure, (L x W x H) 62 x 363 x 286 mm, light gray (RAL 7035), IP54, 2203189

Order No.: 64P0817
EAN: 4055626378435
MPN:
2203189
DCS 15 M C O C C 7035
Series: DCS

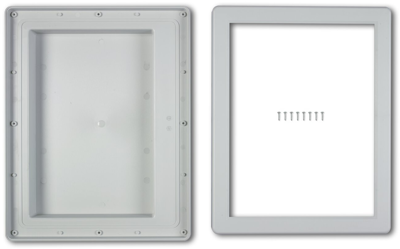

2203189 Phoenix Contact General Purpose Enclosures Image 1

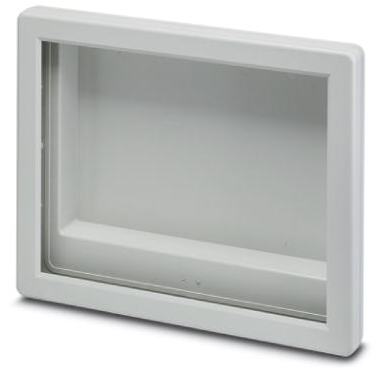

2203189 Phoenix Contact General Purpose Enclosures Image 2

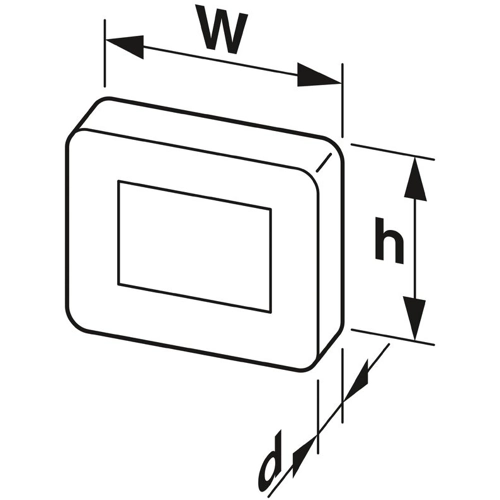

2203189 Phoenix Contact General Purpose Enclosures Image 3
Image may differ
Unit Price (€ / pc.)
168.2541 € *
Available: 0 pcs.
Available in 10 days: 75 pcs.
Leadtime: 1 Week **
Total Price:
168.25 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
168.2541 €

Electronic housing, 2203189, Phoenix Contact

Display housing, 15", Light gray, Central window, Front level, Consisting of two half shells with screws

Features

  • Display housings for mobile and stationary operator panels
  • Integration of TFT display and membrane keypads
  • Shock-resistant ABS plastic
  • Flammability rating V0 in accordance with UL 94
Technical specifications
Breite 363 mm
Farbe lichtgrau
Höhe 286 mm
Länge 62 mm
Material ABS
RAL-Farbnummer 7035
Schutzart (IP) IP54
Logistics
Ursprungsland DE
Zolltarifnummer 39269097
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
