1407624 | Phoenix Contact

Surface mount housing, size B6, PA, 2 x M32, angled, longitudinal bow locking, IP66, 1407624

Order No.: 62P2315
EAN: 4046356776868
MPN:
1407624
HC-EVO-B06-SHWSC-2SSM32-PLRBK
Series: HC-EVO
1407624 Phoenix Contact Housings for HDC Connectors
Image may differ
Unit Price (€ / pc.)
33.2843 € *
Available: 0 pcs.
Available in 10 days: 89 pcs.
Leadtime: 1 Week **
Total Price:
33.28 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
33.2843 €

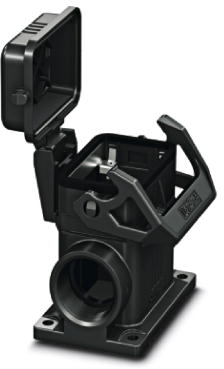

Box mounting base, 1407624, Phoenix Contact

Box mounting base B6, with single locking latch, Material: PA, Protective cover material: PC, Cable outlets: 2, Lateral, 2x M32, Height: 74 mm, Cable gland: none, Protective cover: yes, Standard.

One screw connection opening is closed, however can be opened using a screwdriver.

Features

  • Low weight
  • Lower risk of condensation
Technical specifications
Ausführung Anbaugehäuse
Gehäusegröße B6
Gehäusematerial PA
Kabelausgang 2 x M32, abgewinkelt
Schutzart (IP) IP66
Verriegelung Längsbügelverriegelung
Logistics
Ursprungsland PL
Zolltarifnummer 85389099
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
