2313915 | Phoenix Contact
Ethernet network isolator, 2 ports, 1 Gbit/s, 2313915
Unit Price (€ / pc.)
253.9698 € *
Available: 0 pcs.
Available in 10 days: 366 pcs.
Leadtime: 2 Weeks **

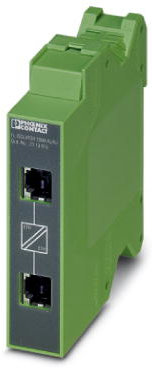

Network isolator, 2313915, Phoenix Contact
Passive network isolator for electrical isolation in Ethernet networks. This protects Ethernet devices from potential differences of up to 4 kV. Can be used for transmission speeds of up to 1 Gbps. Possible to connect two RJ45 plugs.
Features
- No power supply required
- Protection against aggressive environmental influences, particularly harsh industrial environments, thanks to coated PCB
- Approval for railway applications (rolling stock) in accordance with EN 50155 and EN 50121
- Electrical isolation of data cables and cable shielding
- Extended temperature range of -25 °C to +85 °C
- Mounting on EN DIN rails
- Transmission speed of up to 1000 Mbps
- Continuous insulation voltage of 250 VRMS
- Shipbuilding approval in accordance with DNV GL
Technical specifications
| Version | ethernet network isolator | |
| Data transmission rate | 1000000000 mb/s | |
| Ports | 2 |
Download
Logistics
| Country of origin | DE |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
