2708119 | Phoenix Contact
PHOENIX CO 2708119
Unit Price (€ / pc.)
98.1393 € *
Available: 0 pcs.
Available in 10 days: 468 pcs.
Leadtime: 2 Weeks **

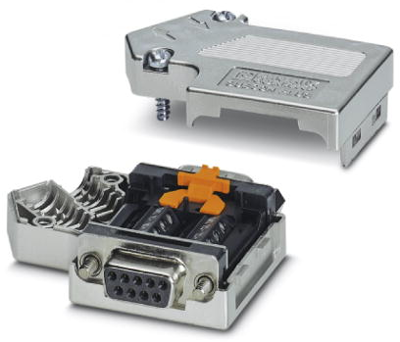

Bus connector, 2708119, Phoenix Contact
The SUBCON-PLUS-CAN is specifically designed for use in CAN systems. Under field conditions, it enables the quick and easy connection of the incoming and outgoing bus line. The terminating resistor is already integrated in all versions. It can be connected externally by means of a slide switch. At the same time, the outgoing bus segment is switched off. This makes it easy to start up segment by segment while incorrect terminations are avoided. A special feature of the 35° angled connector is that the internal connection unit can be turned round. Whether the cable is to be inserted from the right or left can thus be decided on-site.
Features
- Separate terminal blocks for bus cables
- Segment-by-segment startup
- High level of EMC
- Assembly under field conditions
- Flexibility in terms of cable entry selection
- High transmission speed
- Suitable for bus cables according to CiA Draft Recommendation 303-1 with an outside diameter of 8 mm
- Termination resistor can be connected
- Change to the D-SUB orientation through a reversible connection block
Technical specifications
| Bus Connection | D-Sub | |
| Bussystem | CAN | |
| Data transmission rate | 1000000 mb/s | |
| Contact connection | PCB connection | |
| Pin number | 9 pole | |
| Degree of protection (IP) | IP40 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
