2744348 | Phoenix Contact

PHOENIX CO 2744348

Order No.: 64P7014
EAN: 4017918172947
MPN:
2744348
SUBCON-PLUS-PROFIB
Series: SUBCON
Phoenix Contact

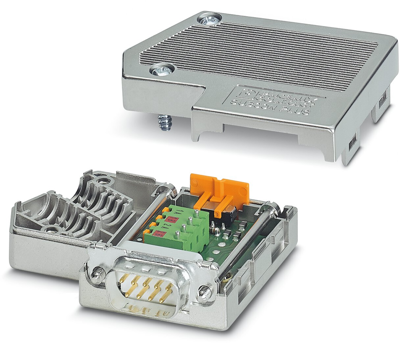

2744348 Phoenix Contact Interface Connectors, Bus Connectors Image 1

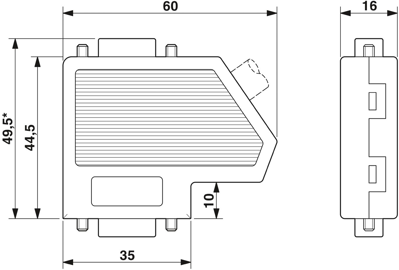

2744348 Phoenix Contact Interface Connectors, Bus Connectors Image 2
Image may differ
Unit Price (€ / pc.)
82.8716 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
82.87 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
82.8716 €

Bus connector, 2744348, Phoenix Contact

D-SUB plug, 9-pole., pin, Axial version with two 35° cable entries, Bus system: PROFIBUS DP up to 12 Mbps, Termination resistor can be switched on via slide switch, Pin assignment: 3, 5, 6, 8; Spring-cage connection terminal blocks.

Features

  • Suitable for all common fast connect PROFIBUS cables and RS-485 bus lines
  • Change to the D-SUB orientation through a reversible connection block
Technical specifications
Bus Connection D-Sub
Bussystem profibus
Data transmission rate 12000000 mb/s
Contact connection PCB connection
Orientation angled
Pin number 9 pole
Degree of protection (IP) IP40
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
