2761839 | Phoenix Contact

CAN D-Sub bus connector, 9 pole, 2761839

Order No.: 64P6999
EAN: 4017918131814
MPN:
2761839
SUBCON-PLUS M2
Series: SUBCON

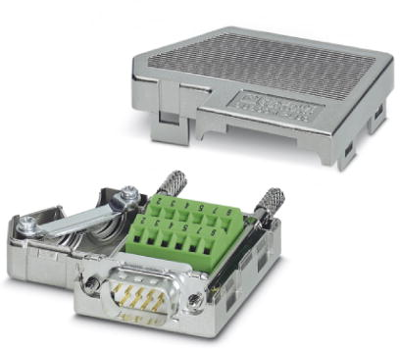

2761839 Phoenix Contact Interface Connectors, Bus Connectors Image 1

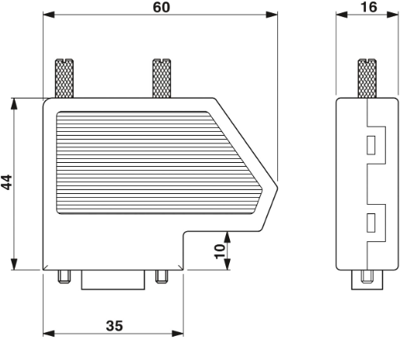

2761839 Phoenix Contact Interface Connectors, Bus Connectors Image 2
Image may differ
Unit Price (€ / pc.)
88.1552 € *
Available: 0 pcs.
Available in 10 days: 193 pcs.
Leadtime: 2 Weeks **
Total Price:
88.16 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
88.1552 €

Bus connector, 2761839, Phoenix Contact

Two cable infeeds are often required on the D-SUB plugs used in order to build fieldbus systems with RS-485 interfaces. The SUBCON-PLUS plugs range fulfills this requirement and routes the connection to screw terminal blocks – however, duplicated – for two cables. This means clarity during wiring and it simplifies every startup. These plugs are of course also shielded against EMC influences with a metallized housing. In addition, by placing the connection block in either the upper or lower shell, it is possible to select the cable infeed on site from the right or left.

Features

  • Separate terminal blocks for each cable
  • Assembly under field conditions
  • High transmission speed
  • Easy assembly thanks to knurled screws
  • High level of EMC
  • Flexibility in terms of cable entry selection
  • Can be used universally
  • Change to the D-SUB orientation through a reversible connection block
Technical specifications
Bus Connection D-SUB
Bussystem CAN
Contact connection Leiterplattenanschluss
Orientation abgewinkelt
Pin number 9-polig
Degree of protection (IP) IP20
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
