2902321 | Phoenix Contact

Profibus D-Sub bus connector, 9 pole, 12 Mbit/s, 2902321

Order No.: 64P7026
EAN: 4046356655057
MPN:
2902321
SUBCON-PLUS-PROFIB/AX/M12
Series: SUBCON

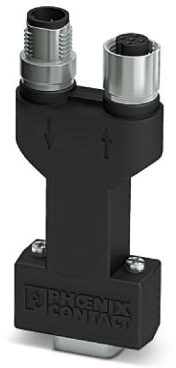

2902321 Phoenix Contact Interface Connectors, Bus Connectors Image 1
2902321 Phoenix Contact Interface Connectors, Bus Connectors Image 2
Image may differ
Unit Price (€ / pc.)
88.5479 € *
Available: 0 pcs.
Available in 10 days: 107 pcs.
Leadtime: 2 Weeks **
Total Price:
88.55 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
88.5479 €

Bus connector, 2902321, Phoenix Contact

The SUBCON-PLUS fast connector with M12 connection ensure error-free installation of bus systems, thanks to the use of fully-tested components such as cables and connectors. The innovative housing concept is lightweight yet offers optimum mechanical protection against environmental influences. This means that the fast connection plugs are ideal, even in applications subject to vibration. The unique SPEEDCON fast locking system on the M12 connections offers reliable connection with just half a turn.

Features

  • Quick connection thanks to M12-SPEEDCON fast locking system
  • Through-contacted shielding from M12 to D-SUB
Technical specifications
Bussystem Profibus
Pin number 9-polig
Data transmission rate 12000000 mb/s
Degree of protection (IP) IP40
Bus Connection D-SUB
Contact connection M12-Stecker/M12-Buchse
Orientation gerade
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei
