2708313 | Phoenix Contact

FO converter, 500 kbit/s, 24 VDC, 2708313

Order No.: 64P6869
EAN: 4017918974015
MPN:
2708313
PSI-MOS-RS485W2/FO 660 E
Series: PSI
Phoenix Contact
2708313 Phoenix Contact Media converters

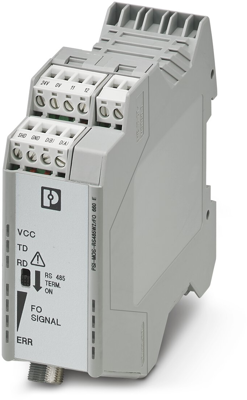

Image may differ
Unit Price (€ / pc.)
691.6518 € *
Available: 0 pcs.
Available in 10 days: 9 pcs.
Leadtime: 2 Weeks **
Total Price:
691.65 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
691.6518 €

FO converter, 2708313, Phoenix Contact

FO converter with integrated optical diagnostics, alarm contact, for RS-485 2-wire bus systems (SUCONET K, Modbus) up to 500 kbps, NRZ coding, terminal device with one FO interface (FSMA), 660 nm, for polymer/PCF fiber cable.

Features

  • Can be combined with the PSI copper repeater in a modular way using DIN rail connectors
  • Supply voltage and data signals routed through the DIN rail connectors
  • Connections can be plugged in via a COMBICON screw terminal block
  • Automatic data rate detection or fixed data rate setting via DIP switches
  • Redundant power supply possible by means of optional system power supply unit
  • High-quality electrical isolation between all interfaces (DeviceNet // fiber optic ports // power supply // DIN rail connector)
  • Approved for use in zone 2
  • Integrated optical diagnostics for continuous monitoring of FO paths
  • Intrinsically safe fiber optic interface (Ex op is) for direct connection to devices in zone 1
  • Floating switch contact for advance warning of critical FO paths
  • Suitable for all data rates up to 500 kbps
  • Bit retiming for any cascading depth
  • Shipbuilding approval in accordance with DNV GL
Technical specifications
Version FO converter
Width 35 mm
Data transmission rate 500000 mb/s
Height 99 mm
Assembly DIN rail
Voltage 24 VDC
Depth 105 mm
Logistics
Country of origin DE
Customs tariff number 85176200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
