2708397 | Phoenix Contact
FO converter, 2 Mbit/s, 24 VDC, 2708397
Unit Price (€ / pc.)
1,071.8568 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1,071.86 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1,071.8568 €

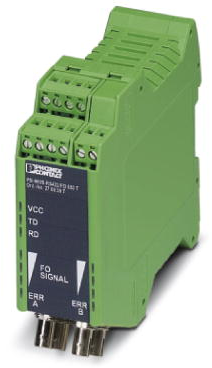

FO converter, 2708397, Phoenix Contact
FO converter with integrated optical diagnostics, alarm contact, for RS-422/RS-485 4-wire/INTERBUS up to 2 Mbps, T-coupler with two FO interfaces (BFOC), 850 nm, for PCF/fiberglass cable (multimode).
Features
- Supply voltage and data signals routed through the DIN rail connectors
- Connections can be plugged in via a COMBICON screw terminal block
- Redundant power supply possible by means of optional system power supply unit
- High-quality electrical isolation between all interfaces (RS-232 // fiber optic ports // power supply // DIN rail connector)
- Approved for use in zone 2
- Intrinsically safe fiber optic interface (Ex op is) for direct connection to devices in zone 1
- Integrated optical diagnostics for continuous monitoring of FO paths
- Floating switch contact for advance warning of critical FO paths
- Automatic data rate detection for all data rates up to 2 Mbps
Technical specifications
| Ausführung | LWL-Konverter | |
| Breite | 35 mm | |
| Datenübertragungsrate | 2000000 mb/s | |
| Höhe | 99 mm | |
| Montage | DIN-Schiene | |
| Spannung | 24 VDC | |
| Tiefe | 103 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85176200 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
