2708423 | Phoenix Contact
FO converter, 115.2 kbit/s, 24 VDC, 2708423
Unit Price (€ / pc.)
1,071.8568 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1,071.86 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1,071.8568 €

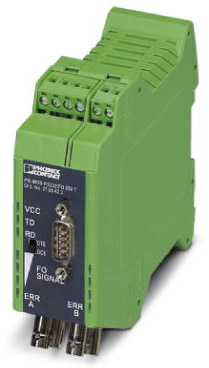

FO converter, 2708423, Phoenix Contact
FO converter with integrated optical diagnostics, alarm contact, for RS-232 interfaces up to 115.2 kbps, T-coupler with two FO interfaces (BFOC), 850 nm, for PCF/fiberglass cable (multimode).
Features
- Supply voltage and data signals routed through the DIN rail connectors
- Connections can be plugged in via a COMBICON screw terminal block
- Redundant power supply possible by means of optional system power supply unit
- High-quality electrical isolation between all interfaces (RS-232 // fiber optic ports // power supply // DIN rail connector)
- Approved for use in zone 2
- Intrinsically safe fiber optic interface (Ex op is) for direct connection to devices in zone 1
- Integrated optical diagnostics for continuous monitoring of FO paths
- Floating switch contact for advance warning of critical FO paths
- Automatic data rate detection for all data rates up to 115.2 kbps
Technical specifications
| Version | FO converter | |
| Width | 35 mm | |
| Data transmission rate | 115200 mb/s | |
| Height | 99 mm | |
| Assembly | DIN rail | |
| Voltage | 24 VDC | |
| Depth | 105 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85176200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
