2708588 | Phoenix Contact

FO converter, 115.2 kbit/s, 24 VDC, 2708588

Order No.: 64P6863
EAN: 4046356176286
MPN:
2708588
PSI-MOS-RS232/FO1300 E
Series: PSI
Phoenix Contact
2708588 Phoenix Contact Media converters

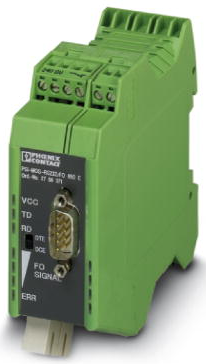

Image may differ
Unit Price (€ / pc.)
1,463.6524 € *
Available: 0 pcs.
Available in 10 days: 47 pcs.
Leadtime: 2 Weeks **
Total Price:
1,463.65 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1,463.6524 €

FO converter, 2708588, Phoenix Contact

Fiber optic converter with integrated optical diagnostics, alarm contact, for RS-232 interfaces up to 115.2 kbps, termination device with one fiber optic interface (SC duplex), 1300 nm, for fiberglass cable.

Features

  • Supply voltage and data signals routed through the DIN rail connectors
  • Connections can be plugged in via a COMBICON screw terminal block
  • Redundant power supply possible by means of optional system power supply unit
  • High-quality electrical isolation between all interfaces (RS-232 // fiber optic ports // power supply // DIN rail connector)
  • Approved for use in zone 2
  • Integrated optical diagnostics for continuous monitoring of FO paths
  • Floating switch contact for advance warning of critical FO paths
  • Automatic data rate detection for all data rates up to 115.2 kbps
Technical specifications
Version FO converter
Width 35 mm
Data transmission rate 115200 mb/s
Height 99 mm
Assembly DIN rail
Voltage 24 VDC
Depth 105 mm
Logistics
Country of origin DE
Customs tariff number 85176200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
