2708711 | Phoenix Contact

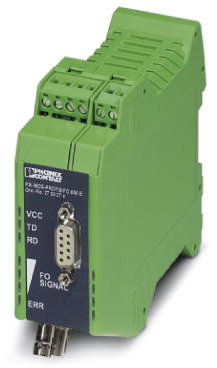

FO converter, 2708711, Phoenix Contact

FO converter with integrated optical diagnostics, coated PCB, alarm contact, for PROFIBUS up to 12 Mbps, T-coupler with two FO interfaces (BFOC), 850 nm, for PCF or fiberglass cable (multimode).

Features

• Can be combined with the PSI copper repeater in a modular way using DIN rail connectors
• Supply voltage and data signals routed through the DIN rail connectors
• Connections can be plugged in via a COMBICON screw terminal block
• Automatic data rate detection or fixed data rate setting via DIP switches
• Redundant power supply
• High-quality electrical isolation between all interfaces (DeviceNet // fiber optic ports // power supply // DIN rail connector)
• Approved for use in zone 2
• Integrated optical diagnostics for continuous monitoring of FO paths
• Intrinsically safe fiber optic interface (Ex op is) for direct connection to devices in zone 1
• Floating switch contact for advance warning of critical FO paths
• Suitable for all data rates up to 12 Mbps
• Bit retiming for any cascading depth
• Shipbuilding approval in accordance with DNV GL
