1321249 | Phoenix Contact
Socket, RJ45, 8 pole, 8P8C, solder connection, through hole, 1321249
Unit Price (€ / pc.)
6.2356 € *
Available: 84 pcs.
Available in 10 days: 4,872 pcs.
Leadtime: 1 Week **
Total Price:
6.24 € *
Price list
Quantity
Price per unit*
1 pcs.
6.2356 €
10 pcs.
5.7358 €
50 pcs.
5.2241 €
100 pcs.
4.7005 €
*incl. VAT plus shipping costs
**Subject to prior sale

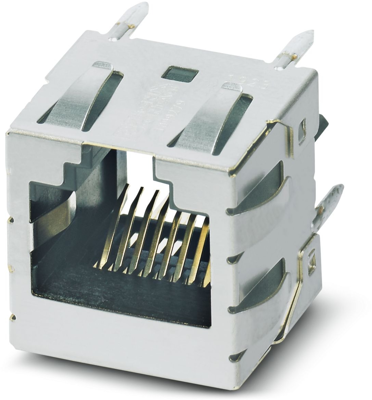

RJ45 PCB connector, 1321249, Phoenix Contact
RJ45 PCB connector, design: RJ45, degree of protection: IP20, number of positions: 8, 10 Gbps, material: Metal, connection method: THR reflow/THT wave, Short solder contacts.
Features
- Ideal for demanding applications due to the high shock and vibration resistance as well as the extended temperature range
- 360° shielding ensures reliable transmission, even in industrial applications
- Housing shield springs enable an optimized EMC shielding concept
- Automated handling process thanks to reflow capability
- The extended temperature range from -40°C to +105°C enables use in demanding industrial applications
Technical specifications
| Anschluss | Lötanschluss | |
| Ausführung | Buchse | |
| Montage | Durchgangsloch | |
| Polbild | 8P8C | |
| Polzahl | 8-polig | |
| RJ-Variante | RJ45 |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85366930 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
