2900509 | Phoenix Contact
Safety relays, 3 Form A (N/O), 24 V (DC), 50 Ω, 6 A, 250 V (DC), 250 V (AC), 2900509
Unit Price (€ / pc.)
260.8123 € *
Available: 0 pcs.
Available in 10 days: 222 pcs.
Leadtime: 2 Weeks **

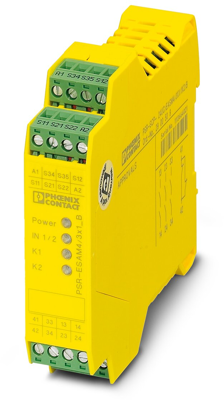

Safety relay, 2900509, Phoenix Contact
Safety relay for emergency stop and safety door monitoring up to SIL 3 or Cat. 4, PL e in accordance with EN ISO 13849, 2-channel operation, 3 enabling current paths, Nominal input voltage: 24 VDC, Plug-in screw terminal block.
Features
- Manually monitored and automatic activation in a single device
- Basic insulation
Technical specifications
| Connection | screw connection | |
| Contact type | 3 Form A (N/O) | |
| Contact material | AgSnO2 | |
| Breaking capacity | 1500 VA | |
| Switching Voltage (AC) | 250 V | |
| Switching Voltage (DC) | 250 V | |
| switching current | 6 A | |
| Coil voltage (DC) | 24 V | |
| Coil resistance | 50 Ω |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85371098 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
