2904957 | Phoenix Contact

Safety relays, 1 Form A (N/O), 24 V (DC), 150 Ω, 6 A, 250 V (DC), 250 V (AC), 2904957

Order No.: 64P2703
EAN: 4046356904872
MPN:
2904957
PSR-MS55-1NO-1DO-24DC-SC
Series: PSR
Phoenix Contact
2904957 Phoenix Contact Monitoring Relays
Image may differ
Unit Price (€ / pc.)
146.6913 € *
Available: 0 pcs.
Available in 10 days: 118 pcs.
Leadtime: 2 Weeks **
Total Price:
146.69 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
146.6913 €

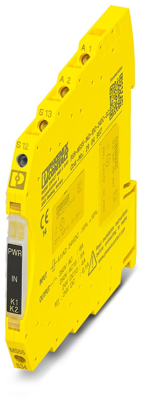

Safety relay, 2904957, Phoenix Contact

Safety relay for monitoring non-equivalent signal generators up to SIL 3, Cat. 4, PL e, 2-channel, Non-equivalent operation, Manual, Monitored start, 1 enabling current path, US = 24 VDC, Fixed screw terminal block.

Features

  • Low housing width of just 6.8 mm
  • Manual and monitored activation
Technical specifications
Connection screw connection
Contact type 1 Form A (N/O)
Contact material AgSnO2
Breaking capacity 1500 VA
Switching Voltage (AC) 250 V
Switching Voltage (DC) 250 V
switching current 6 A
Coil voltage (DC) 24 V
Coil resistance 150 Ω
Logistics
Country of origin DE
Customs tariff number 85371098
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
