2908777 | Phoenix Contact

Safety relays, 2 Form C (NO/NC), 24 V (DC), 6 A, 250 V (DC), 250 V (AC), 2908777

Order No.: 64P2975
EAN: 4055626338651
MPN:
2908777
REL-SR- 24DC/2X21/FG
Series: REL-SR
Phoenix Contact
2908777 Phoenix Contact Monitoring Relays
Image may differ
Unit Price (€ / pc.)
18.3855 € *
Available: 0 pcs.
Available in 10 days: 1,420 pcs.
Leadtime: 2 Weeks **
Total Price:
18.39 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
18.3855 €

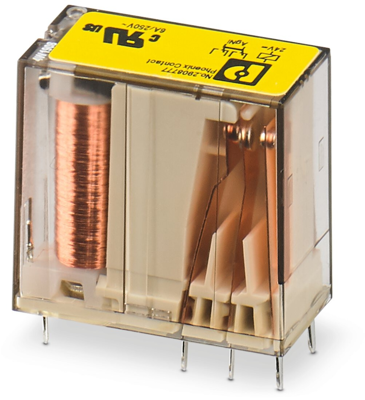

Safety relay, 2908777, Phoenix Contact

Safety relay with force-guided contacts in accordance with DIN EN 61810-3, Contact type: 2 changeover contacts. The requirements for type A in accordance with DIN EN 61810-3 are satisfied if the circuit is designed as 1 N/O contact / 1 N/C contact.

Technical specifications
Connection solder connection
Contact type 2 Form C (NO/NC)
Contact material AgNi
Breaking capacity 1500 VA
Switching Voltage (AC) 250 V
Switching Voltage (DC) 250 V
switching current 6 A
Coil voltage (DC) 24 V
Logistics
Country of origin CZ
Customs tariff number 85364190
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
